| All Product... |
|
Equipment length |
Equipment width |
Temperature |
|
18m - 33m |
1800m - 2100m |
≤220℃ |
|
Graular diameter |
Graular height |
Capacity |
|
4mm - 6mm |
2.5mm – 3.5mm |
1000kg/hr – 3000kg/hr |
Resin flake machine is to make use of the low melting point characteristics of materials, evenly distribute the molten liquid on the steel belt moving at a constant speed under the overflow distributor, and under the cooling effect of the continuous spraying device set under or above the steel belt, the materials can be cooled and solidified in the process of moving and conveying, so as to achieve the purpose of laminating.
The main features of resin flaker : rapid solidification of materials; little broken dust; adjustment or control of production speed according to material characteristics and production demand; multi-stage temperature control.

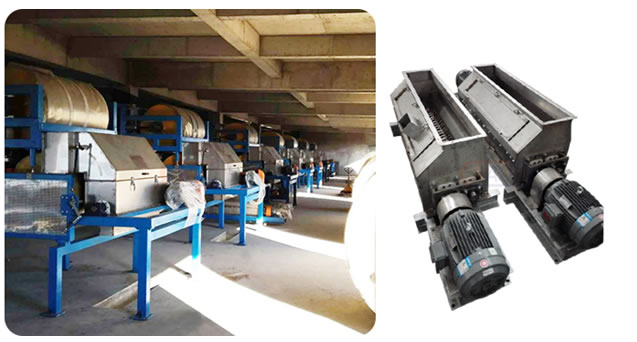

In view of the problem of great dust after crushing with double steel belt flaker in the market, our company has developed a "dust-free crusher". After actual use, the crushed materials are finer and the dust is very small.
|
Gap between crushing roller and blade |
Crushing particle size |
Output of broken particles |
|
1mm |
7mm – 8mm |
＞8t |
|
Model |
Capacity |
|
LT-DBC-1.5-20 |
4t/h |
|
LT-DBC-1.5-25 |
5t/h |
|
LT-DBC-1.5-30 |
6t/h |
